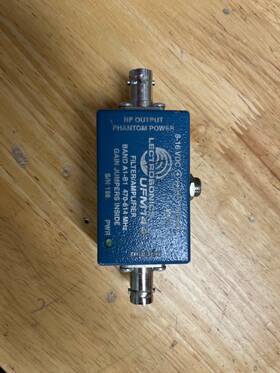

LECTROSONICS UFM144 Uhf Filter Amplifier Module Filter/amplifier
( Brand: Lectrosonics ), ( Manufacturer Part Number: UFM144 ), ( Model: LECTROSONICS UFM144 ), ( Part Type: Filter Amplifier Module ), ( Connectivity: Uhf ), ( Form Factor: Microphone Receiver ), ( Features: Adjustable Gain )
Review LECTROSONICS Uhf Filter/amplifier Module
The Lectrosonics UFM144 UHF Filter/Amplifier Module is a versatile and high-performance accessory designed to enhance the functionality of your Lectrosonics UHF wireless microphone system. This module offers a robust solution for improving RF signal quality, eliminating interference, and boosting weak signals.
The UFM144 is equipped with a wide selection of 144 factory-programmed filters, each designed to target specific frequencies of RF interference. This allows you to easily identify and eliminate unwanted signals, ensuring a clean and reliable audio transmission. The filters are adjustable in 100kHz increments, providing fine-tuning capabilities for optimal performance in various environments.
Moreover, the UFM144 boasts a built-in 20dB gain amplifier, which can be used to boost the signal level of your wireless microphone. This is particularly useful when using long cable runs or in situations with weak RF signals. The amplifier can be remotely controlled via the receiver's gain control, offering seamless integration and easy adjustment.
The UFM144 is compact and lightweight, making it easy to integrate into your existing wireless microphone setup. It is housed in a durable, anodized aluminum chassis that provides excellent RF shielding and ensures reliable operation in demanding conditions.
In summary, the Lectrosonics UFM144 UHF Filter/Amplifier Module is an essential accessory for any Lectrosonics UHF wireless microphone system. Its wide range of filters, adjustable gain amplifier, and robust construction make it an invaluable tool for improving RF signal quality and reducing interference in a variety of applications. Whether you're a professional audio technician, a filmmaker, or a broadcaster, the UFM144 can help you achieve superior audio performance and a more successful production.
Pros and Cons of buying a Lectrosonics UFM144 UHF Filter/Amplifier Module
Pros:1. High-Quality Signal: The UFM144 is known for its excellent signal quality, which is crucial for avoiding interference and maintaining clear audio.
2. Adjustable Gain: The adjustable gain feature allows you to control the level of the audio signal, ensuring optimal performance in various environments.
3. Filtering Capabilities: The UFM144 provides excellent filtering, helping to eliminate any unwanted RF signals and improve the overall audio performance.
4. Durable Construction: Lectrosonics products are renowned for their durability and reliability, making the UFM144 a long-lasting investment.
5. Compatibility: The UFM144 is compatible with a wide range of Lectrosonics receivers, making it a versatile addition to an existing system.
Cons:1. Cost: The Lectrosonics UFM144 is a premium product and may be more expensive than some other filter/amplifier modules on the market.
2. Learning Curve: While the UFM144 is a high-performance tool, it may require some time to fully understand and optimize its features, particularly for those new to audio equipment.
3. Limited to Lectrosonics Receivers: The UFM144 is only compatible with Lectrosonics receivers, which may limit its usefulness if you have equipment from other manufacturers.
Conclusion:The Lectrosonics UFM144 UHF Filter/Amplifier Module is an excellent choice for professionals who require high-quality audio, durability, and versatility. Its adjustable gain and filtering capabilities make it a valuable tool for a variety of audio applications. However, its premium price and compatibility limitations should be considered before making a purchase.
Recommendation:If you're a professional audio engineer or broadcaster, and you're looking for a high-performance filter/amplifier module, the Lectrosonics UFM144 is a strong contender. However, if you're on a tighter budget or need compatibility with equipment from other manufacturers, you may want to explore other options as well. Always ensure to consider your specific needs and budget before making a purchase.
Details:
Power can be applied to a side panel connector or from DC bias on the RF output jack receiver multiplier. A switching regulator is used in the power supply to control current consumption over an input voltage range of 8 16 volts . The Lectrosonics UFM144 is used to configure antenna systems requiring long cable runs or distribution multiple receivers. RF filtering before gain minimizes inter modulation IM products and prevents overload.
Two rugged BNC connectors and a threaded, locking power jack provide secure connections for reliability in field production long term installations. The housing is constructed of cast aluminum with a brushed cover plate. Two transmission line ceramic resonators at the input provide filtering with a 144 MHz band width , followed by 12dB of gain using high quality Gasket RF amplifier an excellent 41dBm output IP3. The regulator maintains low current consumption and heat dissipation which is especially useful in mobile field production applications.
Used in great working order.
part #: ufm144 prices
- $245.00-$350.00
specifications micwisys:
- brand: Lectrosonics
- mpn: Ufm144
- model: Lectrosonics Ufm144
- part type: Filter Amplifier Module
- connectivity: Uhf
- form factor: Microphone Receiver
- features: Adjustable Gain
payments micwisys:
- wallet: Apple-pay
- other
- credit card: Mastercard
shipping micwisys:
- service: USPS Ground Advantage
- transit: 3-8 Days
- class: Standard
- cost: $7.57
- type: Calculated
- carrier: USPS
general micwisys:
- Musical Instruments Gear > Pro Audio Equipment > Microphones Wireless Systems
- condition: Used
returns micwisys:
- policy: No Returns
seller micwisys:
- city: Pasadena, California
- # reviews: 118
- rating: 100.0%
offer micwisys:
- best offers: True
- options: Ship-to-home
- availability: In Stock
- sold: 0
- quantity: 1
- started: June 23, 2025
